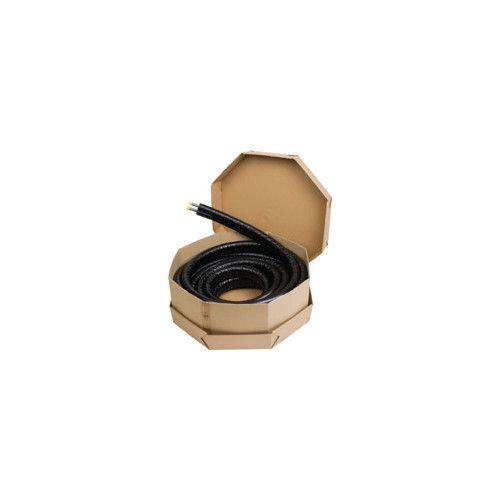

Caleffi 1" SolarFlex Stainless Steel Pipe - 50ft Coil

Price: $1,143.95
6 Months Same as Cash
As low as $ $190.66 / month*

Product Features:

• Easy to install, enabling pipes to be run without using a torch in confined spaces or on the roof
• Ensures a leak-free installation
• Easy to separate, without damaging the tubes
• External copolymer foil protects against UV radiation and mechanical strain
• Identification mark for flow and return
• Meets highest requirements for modern solar heating systems
• Pre-insulated feed and return pipes can be joined easily without special tools

Technical Specifications:

• Two corrugated stainless steel 316L pipes
• Insulation: Two closed cell elastomer UV resistance EPDM
• Outer cover: UV resistant polyolefin copolymer foil
• Insulation thickness: 5/8 inch (16mm)
• Thermal conductivity at 105ºF (40ºC): R-3.6 (.04W/mK)
• Max. working pressure: 150 psi (10 bar)
• Max. fluid temperature: 350ºF (175ºC)
• Min. surface temperature: -60ºF (-50ºC)
• Length per coil: 50 feet (15m)
• Fluid capacity per foot: 0.0509 gallons (0.19 liters)
• Min. bending radius: 5 inch (130mm)
• Pressure loss: Approx. 25% more than in a comparable smooth pipe
• Flammability: Class VO
• Flame spread/smoke density: 25/50

This product includes: (2) double nipples (NA12124), (4) union nuts (R31495), (4) segment rings (NA12114), (4) washers (R50056), and UV resistant jacket.
